How to Connect AWS Athena with Tableau Desktop

In today's data-driven world, businesses are constantly seeking ways to extract valuable insights from their vast datasets. Tableau Desktop stands as a premier data visualization tool, enabling users to transform raw data into actionable insights through interactive dashboards and compelling visualizations. However, to truly harness the power of Tableau, seamless integration with powerful data querying services like Amazon Athena is essential.

In this article, we will explore the seamless process of connecting Tableau Desktop with AWS Athena, unlocking a world of possibilities for data analysis and visualization.

Understanding Tableau and Tableau Desktop

Tableau is a leading data visualization software that empowers organizations to visualize and understand their data. It offers a user-friendly interface, drag-and-drop functionality, and a wide range of visualization options, making it accessible to both technical and non-technical users. Tableau Desktop, specifically, is the standalone application that allows users to create, publish, and share visualizations locally or on Tableau Server.

Introducing AWS Athena: Query Data Directly from S3

Amazon Athena, a serverless interactive query service, enables users to analyze data directly in Amazon S3 using standard SQL. It eliminates the need for complex ETL processes or data movement, allowing users to query data on-demand without the need for infrastructure management. By leveraging Athena, organizations can gain valuable insights from their data stored in S3 buckets quickly and cost-effectively.

Installation Instructions

To establish a connection between Tableau Desktop and AWS Athena, follow these simple installation steps:

1. Install Java: Ensure that you have the latest version of 64-bit Java installed on your system.

2. Download and Extract the Athena JDBC Driver: Navigate to the download link and download the Athena JDBC driver. Extract the contents of the ZIP file.

3. Place the Driver: Depending on your operating system:

   • For Windows: Save the Amazon Athena JDBC jar file in the C:\Program Files\Tableau\Drivers directory.
   • For Mac: Save the Amazon Athena JDBC jar file in the ~/Library/Tableau/Drivers directory.

4. Restart Tableau Desktop: After placing the driver in the appropriate directory, restart Tableau Desktop to ensure that the changes take effect.

Configuring the Connection

Once you've completed the installation steps, follow these instructions to configure the connection between Tableau Desktop and AWS Athena:

1. Open Tableau Desktop: Launch Tableau Desktop on your system.

2. Add a New Amazon Athena Connection: In Tableau Desktop, navigate to the data connection window and select "Amazon Athena" from the list of available connectors.

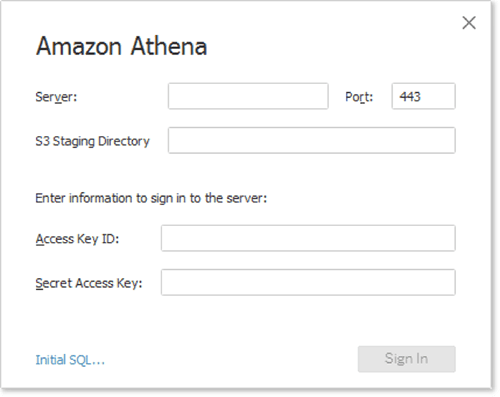

3. Configure Connection Settings: Enter the following details in the connection dialog:

   • Server: Use the format athena.region.amazon.com, replacing region with your desired AWS region (e.g., athena.us-west-2.amazonaws.com).
   • Port: Specify port 443.
   • SSL: Amazon Athena uses SSL by default, so ensure that SSL is enabled.
   • Amazon S3 Staging Directory: This setting can be found in the AWS console for Amazon Athena under "Query Result Location."
   • Username/Password: Provide the Access Key ID and Secret Access Key associated with the IAM user you are logging in as.

4. IAM Permissions: Ensure that the IAM user has the necessary permissions to access Athena. Refer to the AWS documentation for detailed information on the required IAM permissions.

Conclusion

By seamlessly connecting Tableau Desktop with AWS Athena, organizations can unlock the full potential of their data stored in Amazon S3. With Tableau's intuitive visualization capabilities and Athena's powerful querying abilities, users can analyze large datasets and derive actionable insights with ease. Whether you're a data analyst, business intelligence professional, or decision-maker, harnessing the combined power of Tableau and AWS Athena can revolutionize the way you approach data analysis and visualization. So why wait? Dive into your data today and uncover meaningful insights that drive business success.
